Description

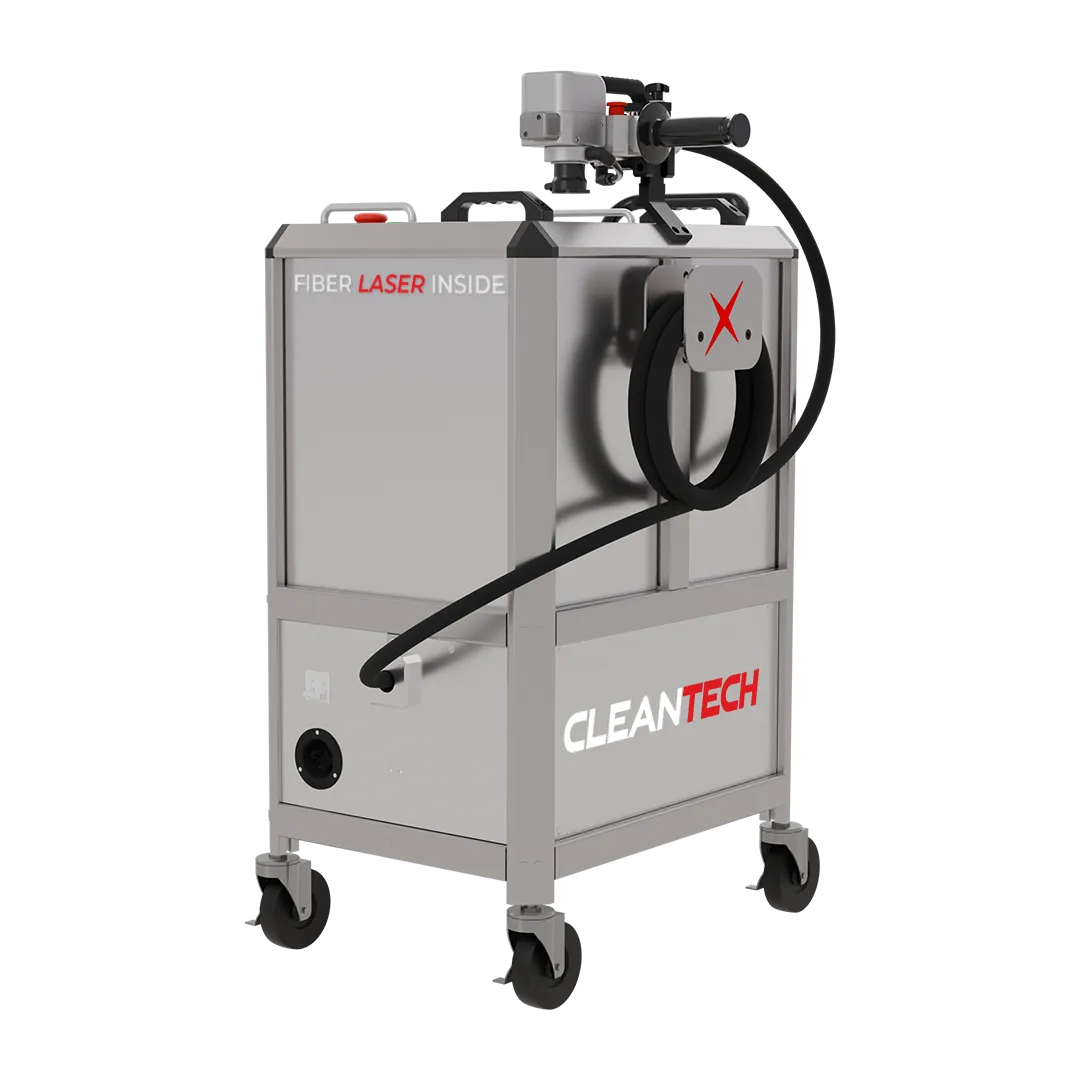

CleanTech Industrial Conditioning Laser 2030
The CleanTech Industrial Conditioning Laser 2030 is our latest handheld surface conditioning system, featuring a pulsed laser. This upgraded model offers enhanced mobility with a smaller, lighter build without compromising power. Its handheld design allows access to hard-to-reach areas, while laser parameters can be adjusted remotely via an integrated mobile app.
This versatile, air-cooled pulsed laser system is suitable for various surface preparation tasks in maintenance, repair, restoration, and preservation. By utilizing laser surface conditioning, you can minimize your environmental impact by reducing the use of abrasive media and chemicals.
Applications for CTCF-1020
| Surface Conditioning | Degreasing |
| Corrosion Removal | Surface Preparation |
| Decontamination | Surface Texturing |
| Coating Removal | Injection Mold Cleaning |
| Pre-Adhesion Treatment | Oxide Removal |
| Pre-Weld Preparation | Anodization Removal |
| Post-Weld Treatment |
Materials That the CTCF-1010 Can Be Used With
| Aluminum | Composites |
| CFRP | Nickel |
| Steel | Concrete |
| Silicone | Chrome |
| Copper | Ceramics |
| Plastics | Cast Iron |
| Brass | Marble |
| Thermoplastics | Carbide |
| Titanium | & More |
Technical Specifications for CTCF-1010
| Model | CTIC-2030 |
|---|---|
| Strip Rate Per Hour | Up to 60 ft² |
| Laser Type | Fiber |
| Scanner | Dual Axis |
| Operation Mode | Pulsed |
| Wavelength | 1070 ±10 nm |
| Operational Frequency | 1 to 4000 kHz |
| Laser Pattern | 5 Presets |
| Head Cable Length | 14 ft (4.5 m) |
| Head Weight | 5.5 lbs |
| Weight | 165 lbs |
| Unit Size W x H x D | 25 x 24 x 42 in (635 x 610 x 1067 mm) |
| Cable Length | 13 ft |
| Temperature | 32° – 96° F (0° – 36° C) |
| Humidity | 10 – 95 % |
| Operational Voltage | 240VAC, 1 ph, 50/60Hz,30A |
| Cooling | Air |
| Safety Class | IV |
| Safety Features | Emergency Stop Button | Key Control | Remote Interlock Connection | Emission Indicator | Air Pressure Sensor | Overheat Protection |
| Mobile Connectivity | Yes |
