Description
CleanTech Commercial Finishing Laser 1020

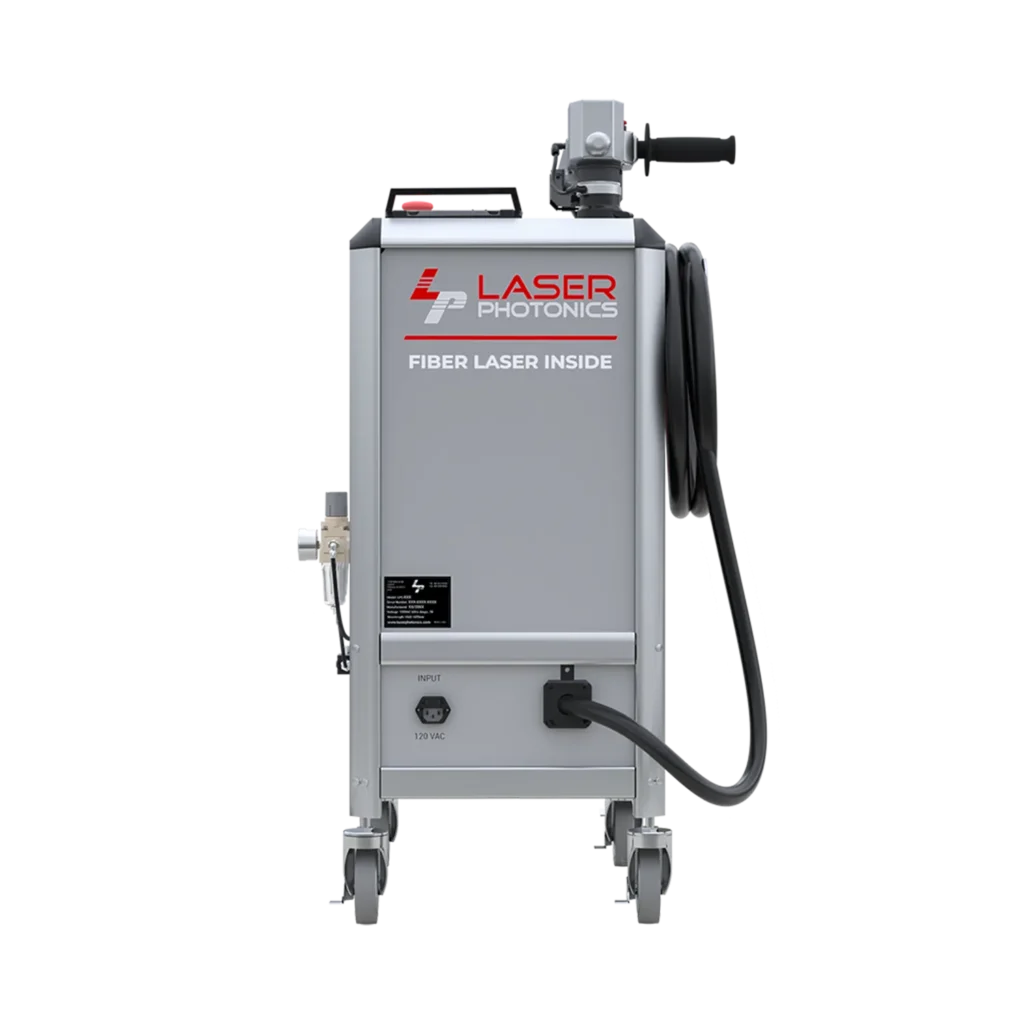

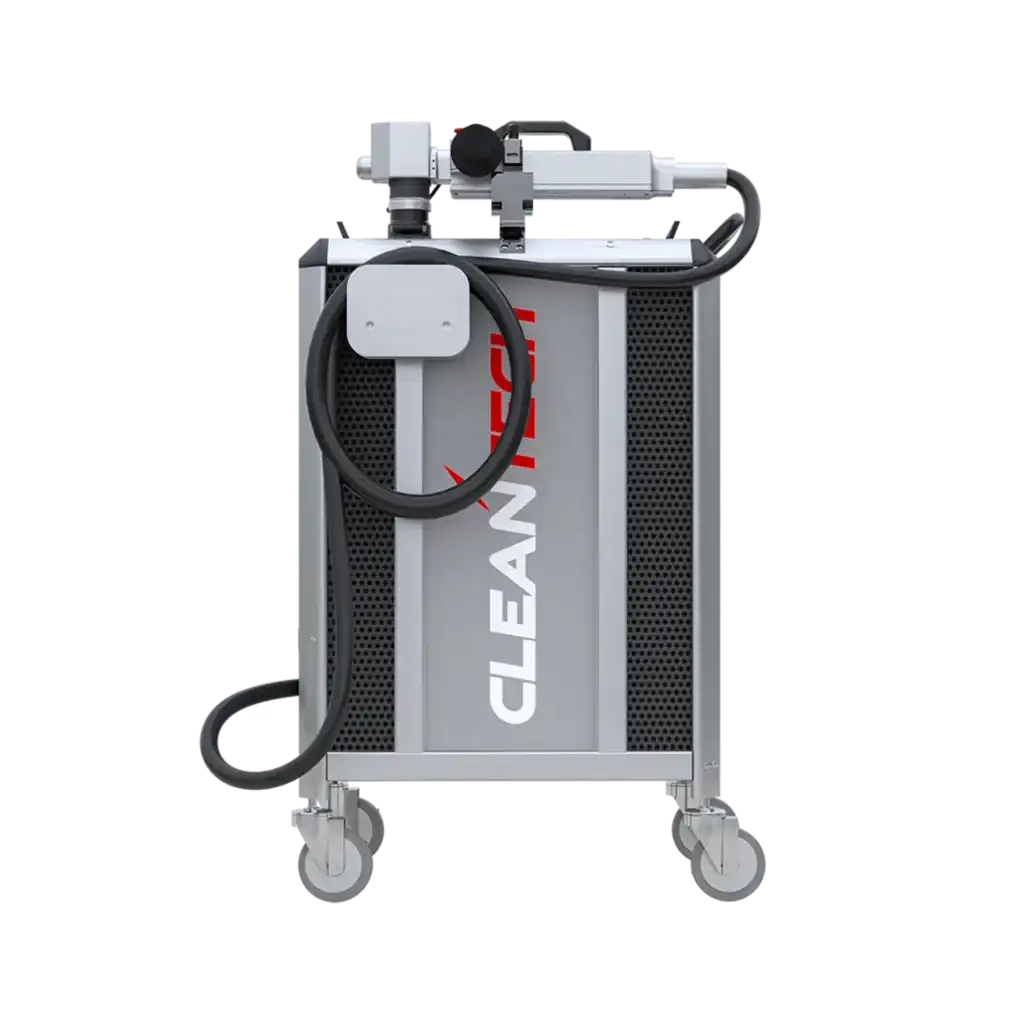

The CleanTech Commercial Finishing Laser 1020 (CTCF-1020) is a powerful handheld pulsed laser system, offering twice the efficiency of our entry-level model. This compact and mobile device is designed for on-site cleaning, finishing, and various surface preparation tasks. It features advanced safety measures and a smaller form factor, enhancing its versatility and ease of use.
The CTCF-1020 integrates dual-axis laser technology, providing an effective and eco-friendly method for processing a wide range of materials, from metals to thermoplastics. It is ideal for industries seeking to streamline operations with a safe, non-abrasive cleaning process. Whether you’re restoring car parts, eliminating mold residues, or achieving precise surface finishes, this advanced laser system boosts operational efficiency and minimizes expenses.
Applications for CTCF-1020
| Surface Conditioning | Degreasing |
| Corrosion Removal | Surface Preparation |
| Decontamination | Surface Texturing |
| Coating Removal | Injection Mold Cleaning |
| Pre-Adhesion Treatment | Oxide Removal |
| Pre-Weld Preparation | Anodization Removal |
| Post-Weld Treatment |
Materials That the CTCF-1010 Can Be Used With
| Aluminum | Composites |
| CFRP | Nickel |
| Steel | Concrete |
| Silicone | Chrome |
| Copper | Ceramics |
| Plastics | Cast Iron |
| Brass | Marble |
| Thermoplastics | Carbide |
| Titanium | & More |
Technical Specifications for CTCF-1010
| Model | CTCF-1020 |
|---|---|
| Strip Rate Per Hour | Up to 12 ft² |
| Laser Type | Fiber |
| Scanner | Dual Axis |
| Operation Mode | Pulsed |
| Wavelength | 1064 nm |
| Head Cable Length | 9.8 – 30 ft (3 – 9 m) |
| Head Weight | 3.5 lbs |
| Size W x H x D | 22 x 44 x 18 in (559 x 1118 x 457 mm) |
| Unit Weight | 126 lbs |
| Temperature | 41 – 104 °F (5 – 40 °C) |
| Humidity | 10 – 90 % Non-Condensing |
| Operational Voltage | 110 – 240V | 50 – 60Hz | 15A |
| Cooling | Air |
| Safety Class | IV |
| Safety Features | Emergency Stop Button | Key Control | Remote Interlock Connection | Emission Indicator | Air Pressure Sensor | Overheat Protection |
| Mobile Connectivity | Yes |
