Description

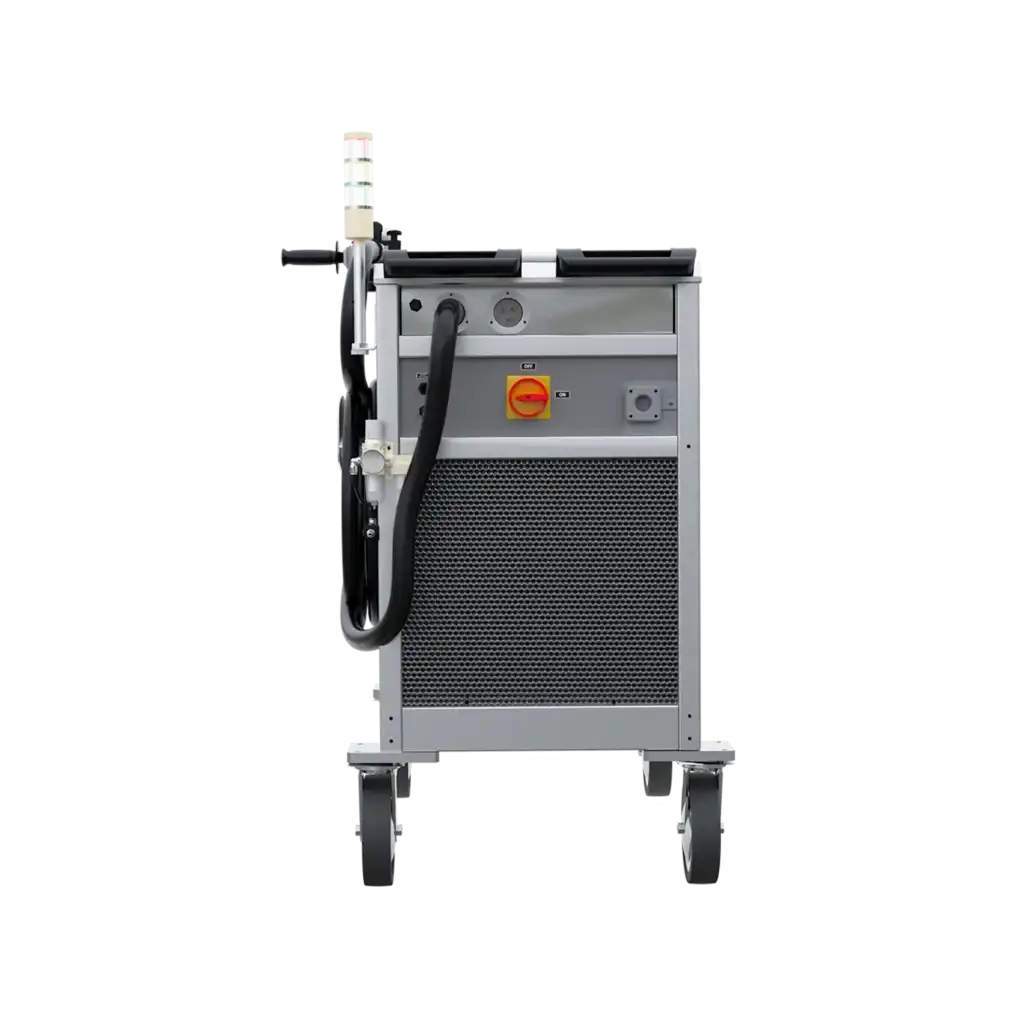

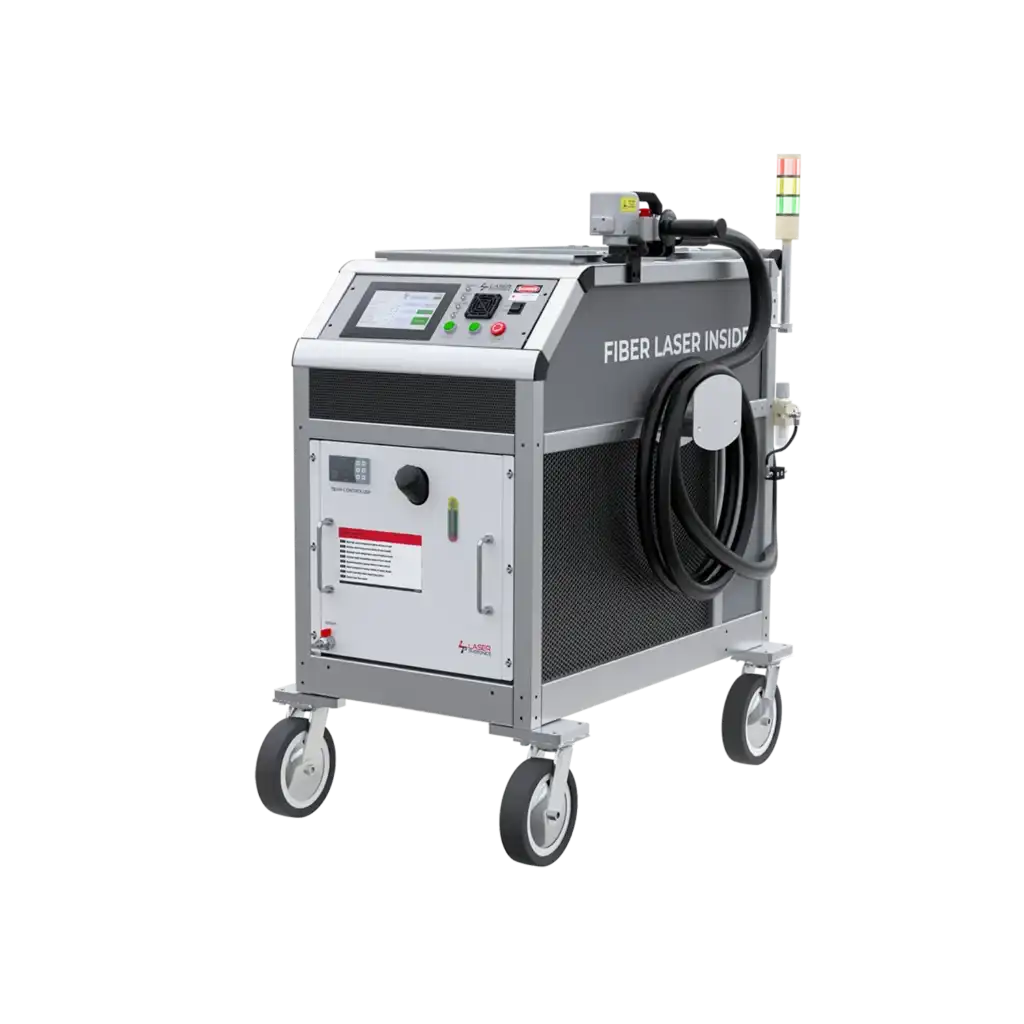

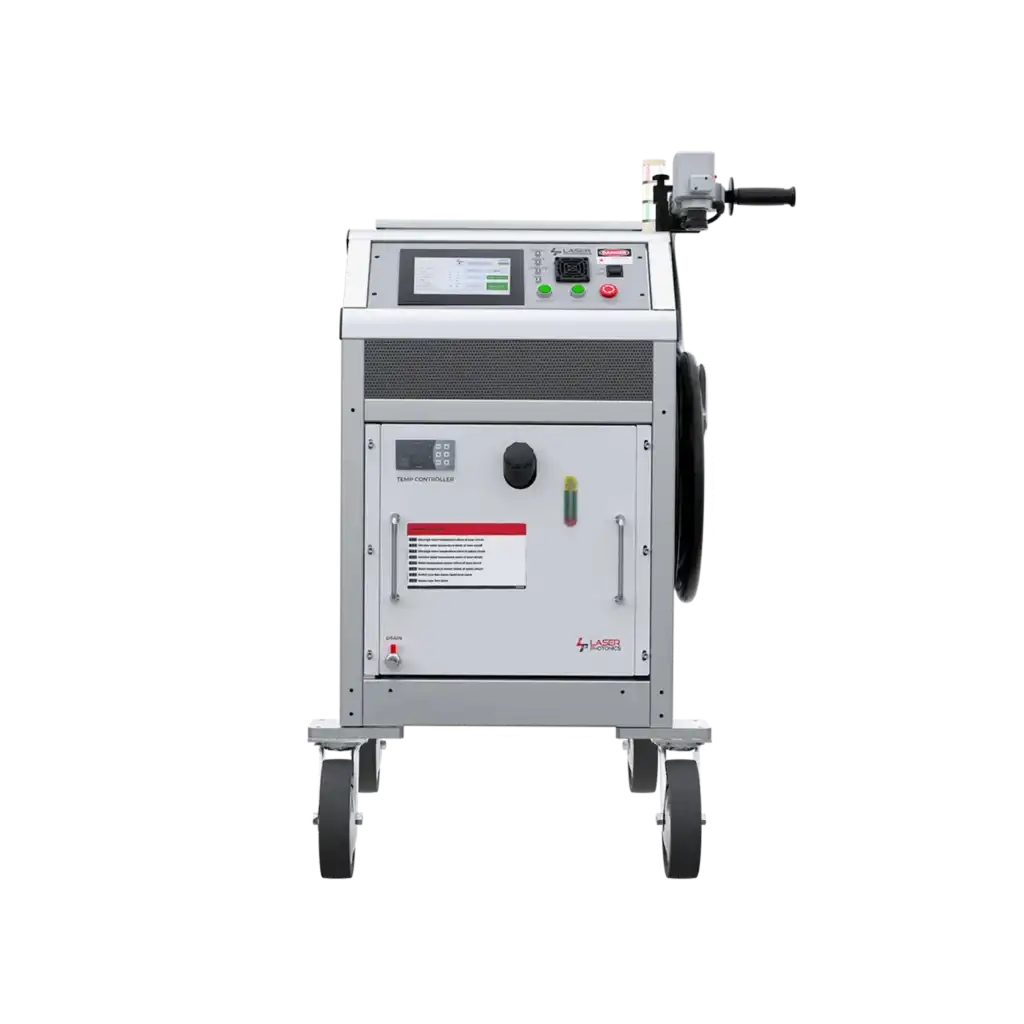

CleanTech Industrial Roughening Laser 3040
The CleanTech Industrial Roughening Laser 3040 is a powerful handheld cleaning system offering exceptional ablation performance. This versatile device excels in corrosion and coating removal, decontamination, de-oxidization, degreasing, surface preparation, and coarsening across various industries. The CTIR-3040 features next-generation mobile connectivity and enhanced overheat protection for improved safety and control.
Designed for user-friendly operation, the CTIR-3040 is easily mastered without prior experience. This Class IV laser system promotes sustainable surface treatment, helping businesses reduce their ecological footprint. Its ability to process a wide range of materials makes it an ideal choice for diverse industrial applications.
Applications for CTCF-1020
| Surface Conditioning | Degreasing |
| Corrosion Removal | Surface Preparation |
| Decontamination | Surface Texturing |
| Coating Removal | Injection Mold Cleaning |
| Pre-Adhesion Treatment | Oxide Removal |
| Pre-Weld Preparation | Anodization Removal |
| Post-Weld Treatment |
Materials That the CTCF-1010 Can Be Used With
| Aluminum | Composites |
| CFRP | Nickel |
| Steel | Concrete |
| Silicone | Chrome |
| Copper | Ceramics |
| Plastics | Cast Iron |
| Brass | Marble |
| Thermoplastics | Carbide |
| Titanium | & More |
Technical Specifications for CTCF-1010
| Model | CTIR-3040 |
|---|---|
| Strip Rate Per Hour | Up to 240 ft² |
| Laser Type | Fiber |
| Scanner | Dual Axis |
| Operation Mode | CW | Modulated |
| Wavelength | 1064 nm |
| Laser Pattern | 5 Presets |
| Head Cable Length | 15 – 45 ft (4.5 – 13.7 m) |
| Head Weight | 5 lbs |
| Main Unit Size W x H x D | 27 x 63.5 x 45 in (686 x 1613 x 1143 mm) |
| Temperature | 32 – 104 °F (0 – 40 °C) |
| Humidity | 10 – 90 % Non-Condensing |
| Operational Voltage | 220V | 50 – 60Hz | 3 ph | 40A |
| Cooling | Water |
| Safety Class | IV |
| Safety Features | Emergency Stop Button | Key Control | Remote Interlock Connection | Emission Indicator | Air Pressure Sensor | Overheat Protection |
| Mobile Connectivity | Yes |
