When you need to reliably analyze steels and other alloying materials like aluminum, nickel, and copper in a safety-critical environment, you need an OES spectrometer that rapidly delivers the analytical performance you can trust first time.
Spark optical emission spectrometers excel at providing full chemistry of critical alloy elements at low detection limits that handheld X-ray and LIBS analyzers can’t: carbon, phosphorus, sulfur, boron, arsenic and tin in low alloy and stainless steels, and nitrogen in duplex steels. That’s why spark OES is the most trusted and widely used method for creation and verification of MTR’s (mill testing reports) in the world.

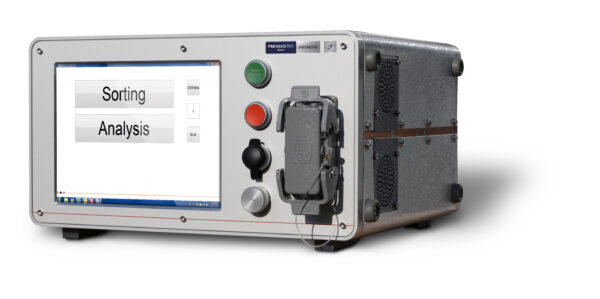

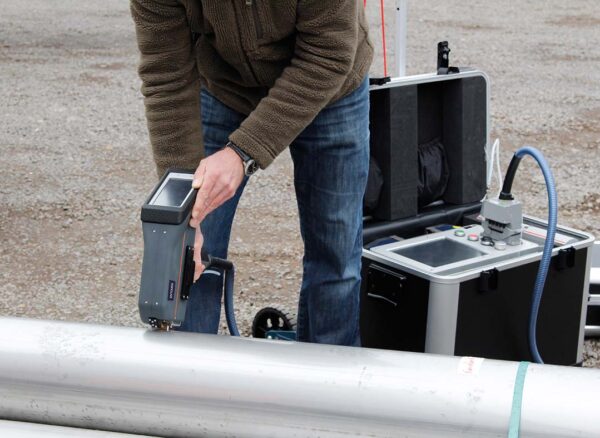

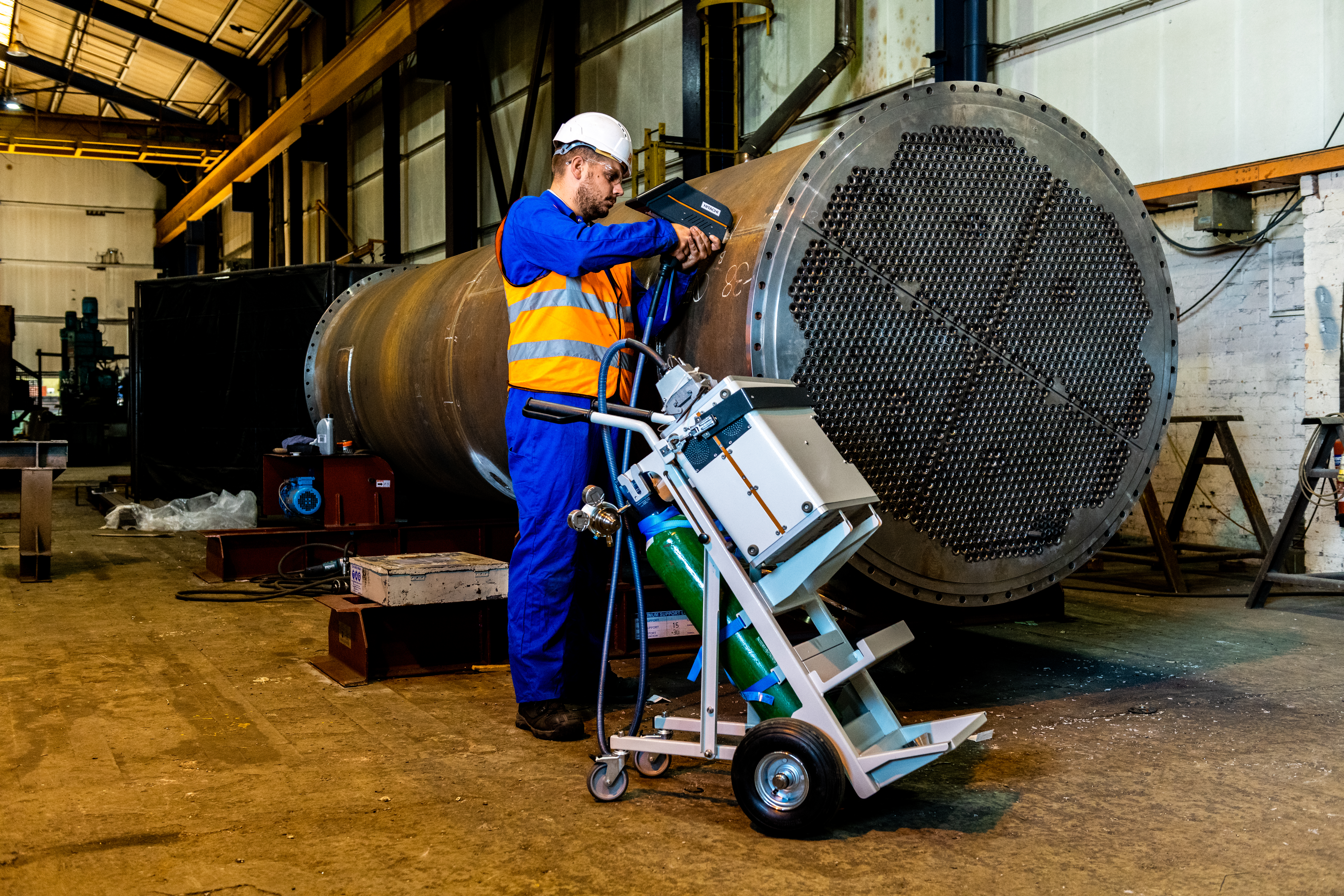

Hitachi High-Tech’s PMI-MASTER Smart OES analyzer, which is made in Germany, is light weight and compact, making it ultra-portable so you can easily take it where you need it; whether at height, in a ditch, material inspection areas outside and inside, or in a laboratory.
Our optical emission spectrometers meet the world’s most stringent PMI metallurgical alloy chemistry testing requirements including API 5L, ASME section IX B& PV, ISO 17025 and A2LA standards.
Why choose the PMI-MASTER Smart?
Results you can trust
Reliable low levels of detection not just for C but also P, S, B, As and Sn in low alloy stainless steel and N in duplex steels.
Easy to use
Easy to re-calibrate and stable measuring results even with temperature changes outside.
Hot sample measurements
Measure elements, including C and Si, reliably from hot surfaces up to 300°C.
Benefit from ExTOPE Connect cloud-based data management services, and easy to use and customized report generator. Share results to remote devices and export into other software.
Multi-CCD optics in Paschen-Runge mounting and optimised pixel resolution
Wavelength range: 185-672nm
Computer system: Internal computer unit and touch screen user interface
2-year extended warranty as standard*
- Steel alloys
- L grade segregation in stainless steel
- C, P*, S*, Sn*, As*, B* analysis in steel
- Al alloys ~ Al-Si ~ Al-Si-Cu
- Cu-Sn ~ Cu-Zn
- Cu, Ni, Zn, Co, Mg, Pb, Sn and Ti alloys
*With UVPro probe
